Flanged Linear Bearing Housing / Mount For LM3UU, LM6UU, LM8UU for 3D Print

Flanged Linear Bearing Mount – Digital 3D Model

Digital product – no physical item will be shipped. After purchase, download links will be delivered directly to your email.

Description:

This Flanged Linear Bearing Mount model is designed for precise fit-checking and seamless integration into your projects.
The model is optimized and ready for 3D printing, making it an excellent choice for prototyping and custom mechanical assemblies.

Features:

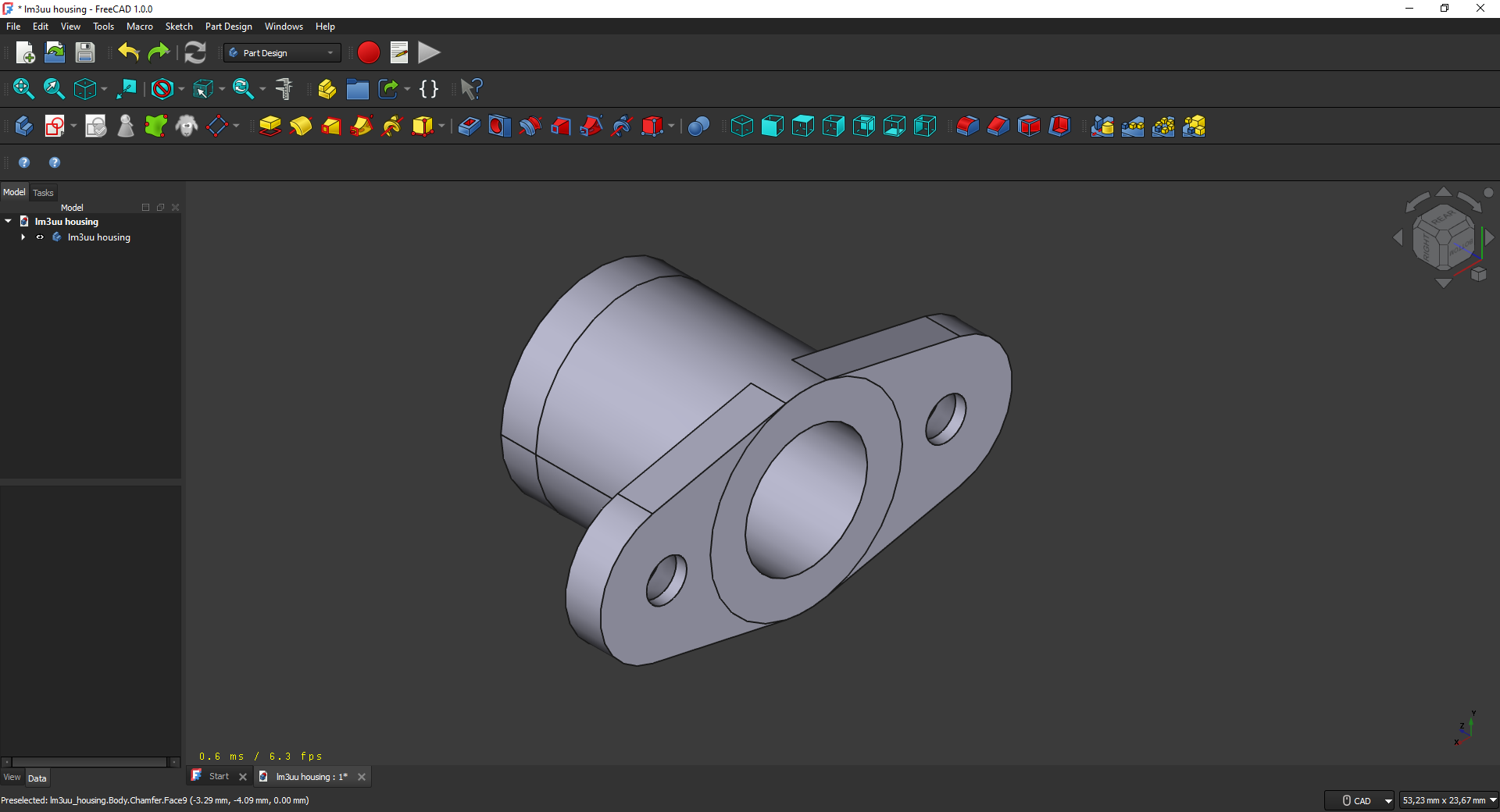

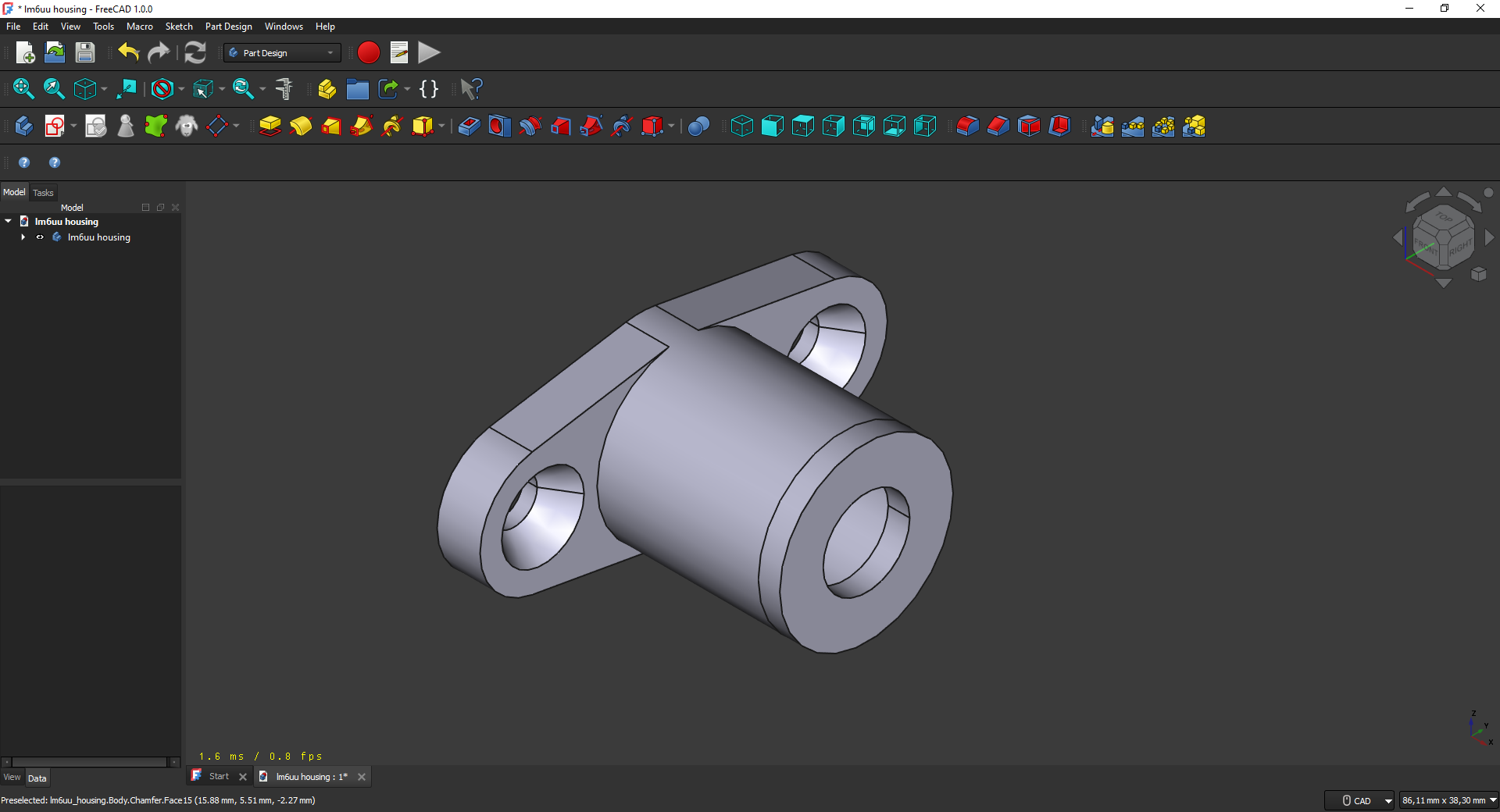

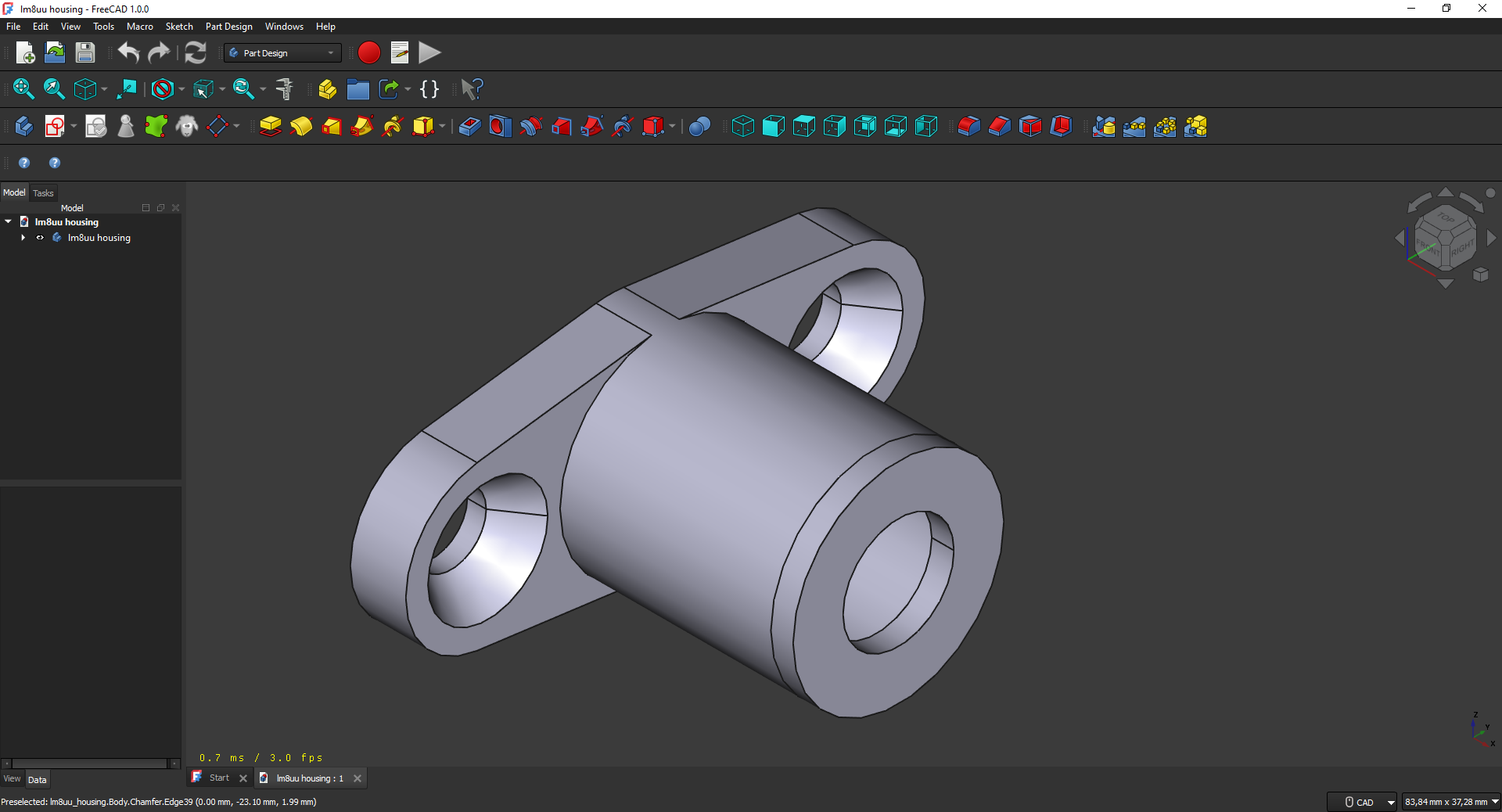

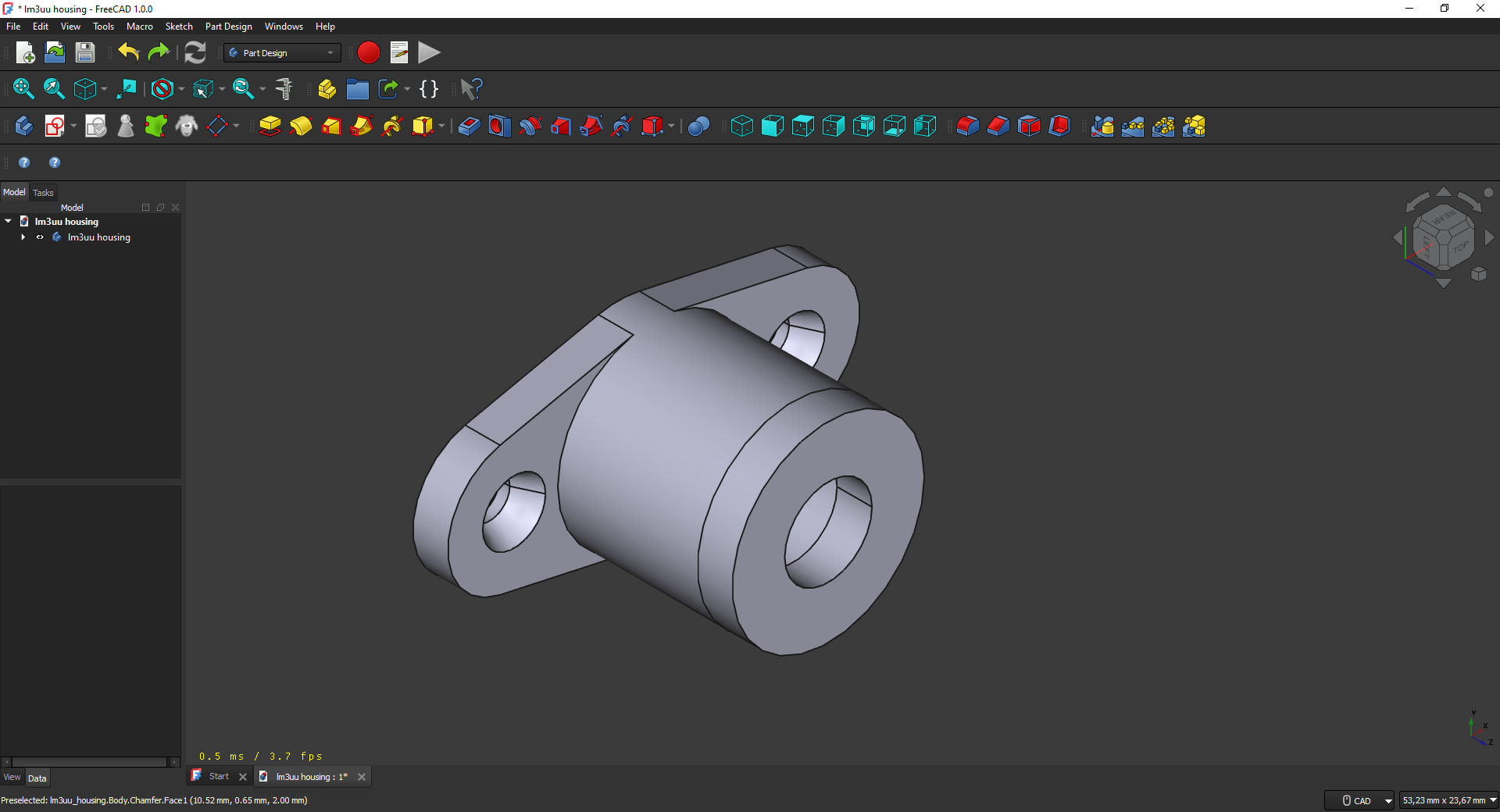

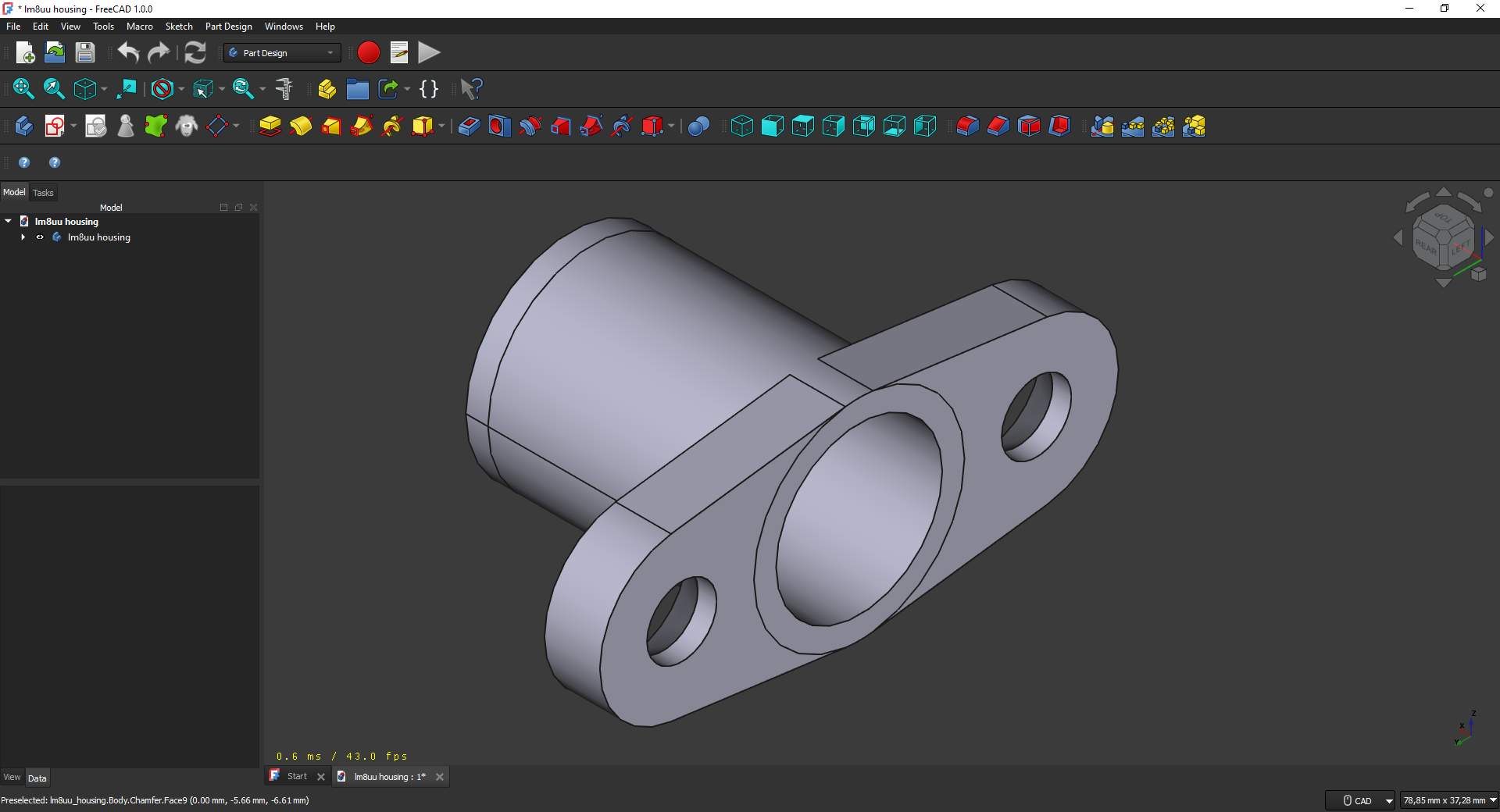

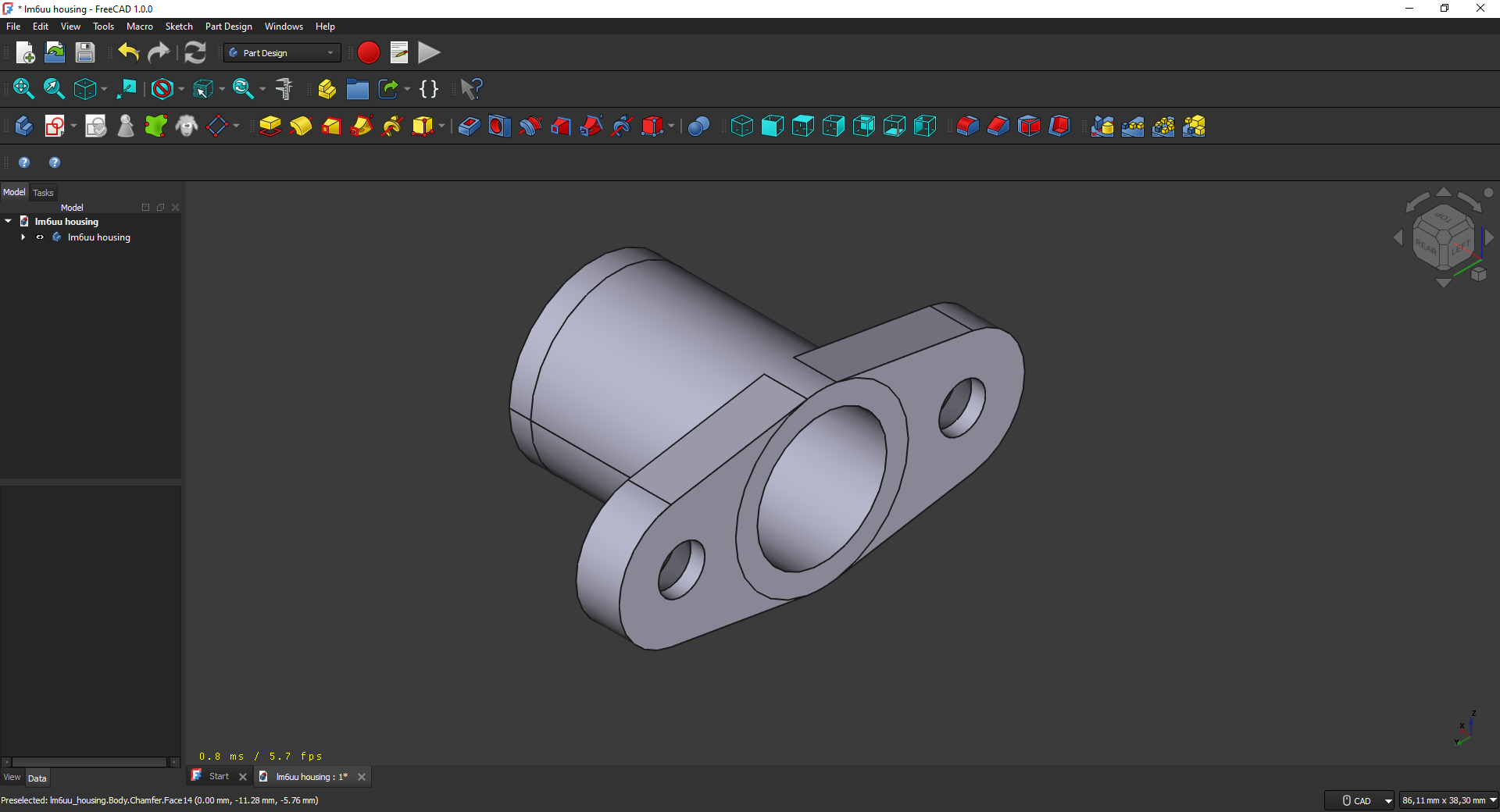

• Highly detailed 3D model created in FreeCAD.
• Compatible with standard linear ball bearings (LM series – e.g., LM8UU, LM10UU, LM12UU).
• Flanged design for secure mounting to flat surfaces.
• Accurate geometry for reliable alignment in mechanical systems.
• Provided in multiple formats for flexibility:
  • .FCStd (FreeCAD original file)
  • .STL (ready for 3D printing)
  • .3MF (advanced support for colors and materials)
• Perfect for CNC machines, 3D printers, and custom engineering projects.

Dimensions For Mounting:

• LM3UU Housing:

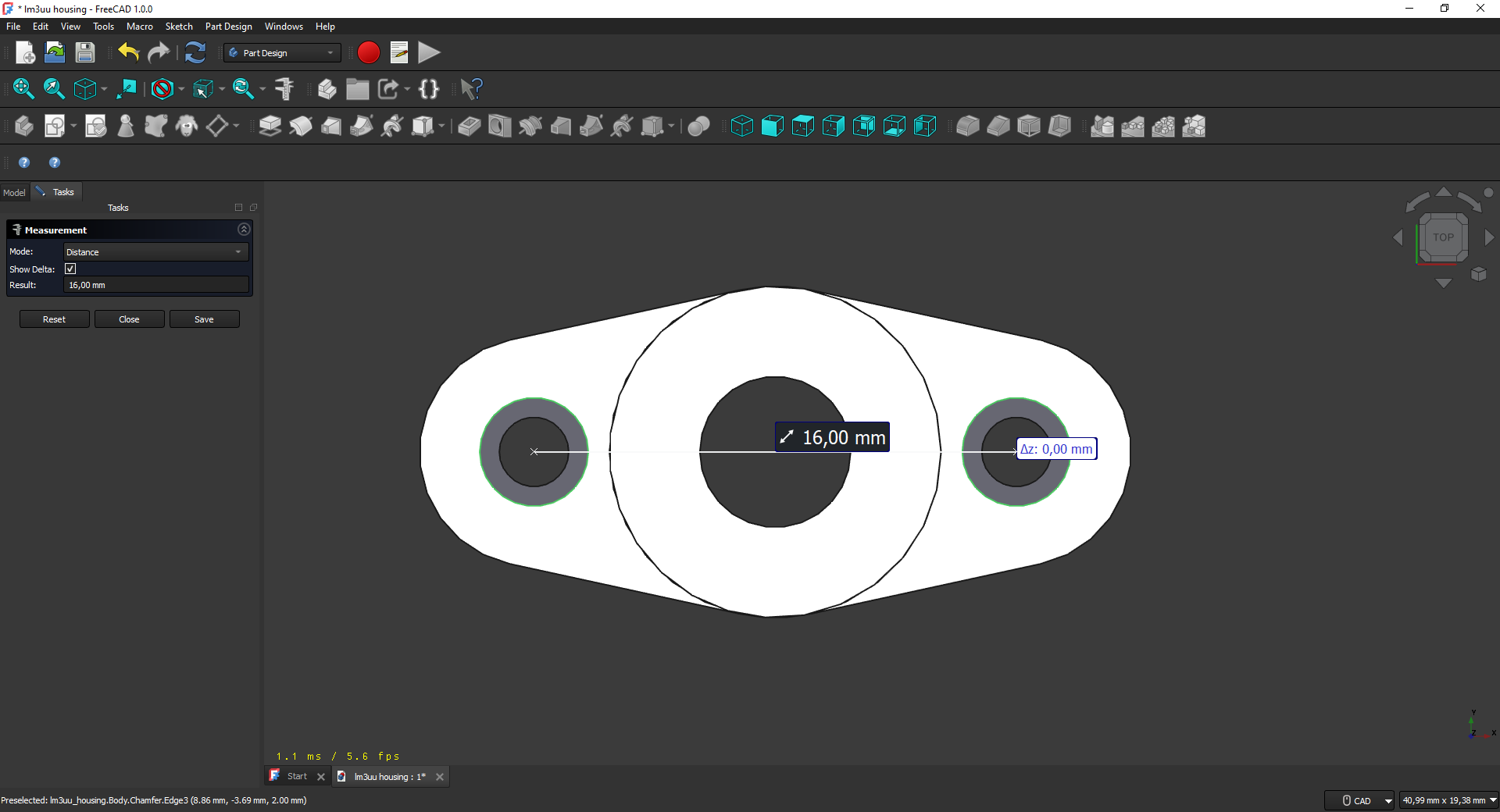

  • Hole Spacing: 16mm
  • Use M3 Cross Recessed Phillips Flat Countersunk Head Screw Bolt GB819
• LM6UU Housing:

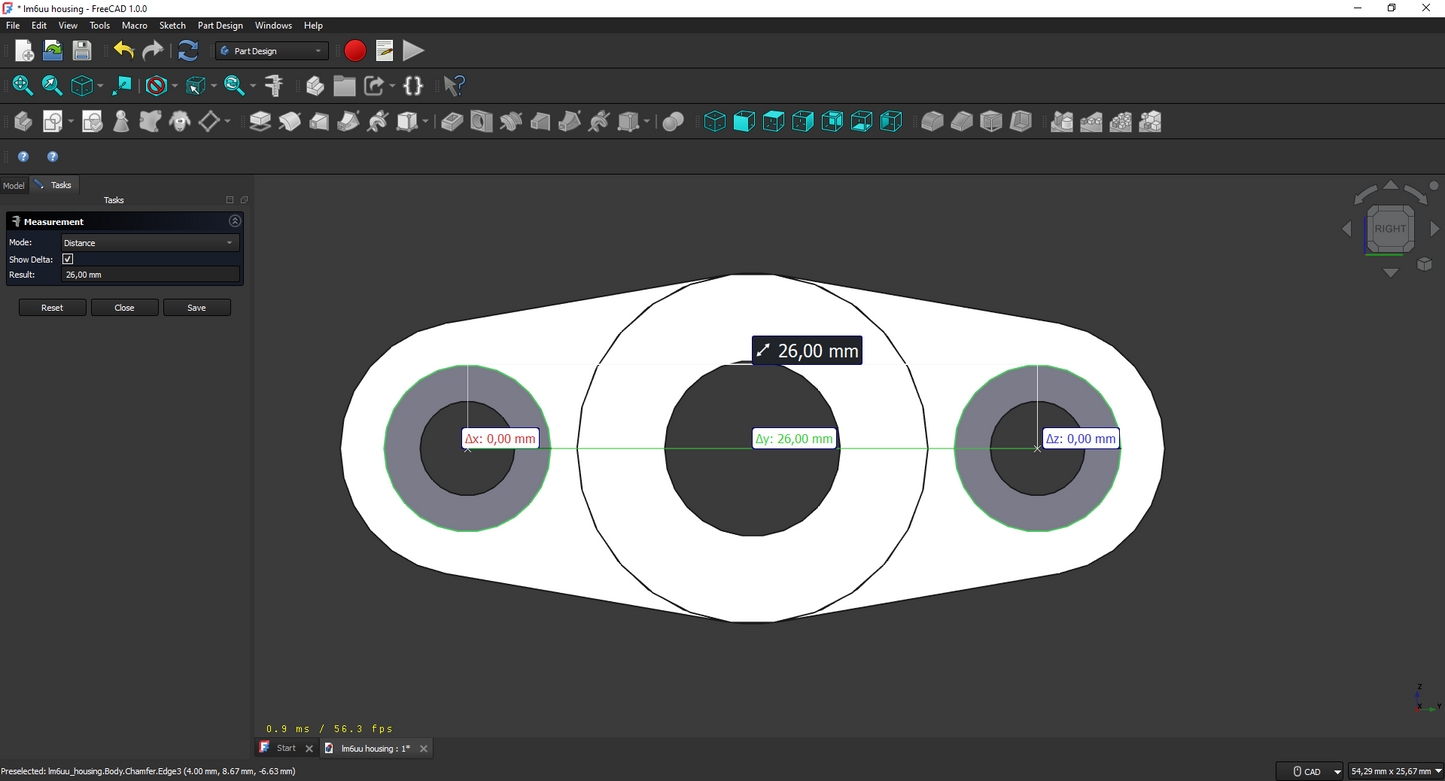

  • Hole Spacing: 26mm
  • Use M4 Cross Recessed Phillips Flat Countersunk Head Screw Bolt GB819
• LM8UU Housing:
  • Hole Spacing 32mm
  • Use M6 Cross Recessed Phillips Flat Countersunk Head Screw Bolt GB819

What’s Included:

• Digital files only (no physical product).
• Limited downloads (3 times within 7 days).
